Nuevo Analizador de Antenas

Waldi todavía no ha informado sobre el precio, conociéndole por sus antenas que están hechas con buena calidad y buen precio(doy fe de ello), espero que con éste analizador haga lo mismo....si es así, aquí ya hay un interesado....

73 David.EA1GGJ

Tiene muy buena pinta, a ver si nos sorprende el precio...

73

HOLA

Alguien en EA por casualidad ya lo tiene?

Saludos

JORGE
EA8TL

Tiene buena pinta ¿Alguien que lo tenga podría aportar sus impresiones?
Saludos

Special Price : 435 € !

no se si sera este precio...es lo lo que pone en la pagina web.... Yo personalmente lo mirare porque necesito uno urgentemente!

Saludos desde Suiza!

ese es el precio de la antena en promocion... para el medidor te dan el precio por email

MAX6 antena analyser - price e-mail

Ya tenemos precios y alguna promoción:

Hello Luis
Thank you for your interest in my webside my ofert

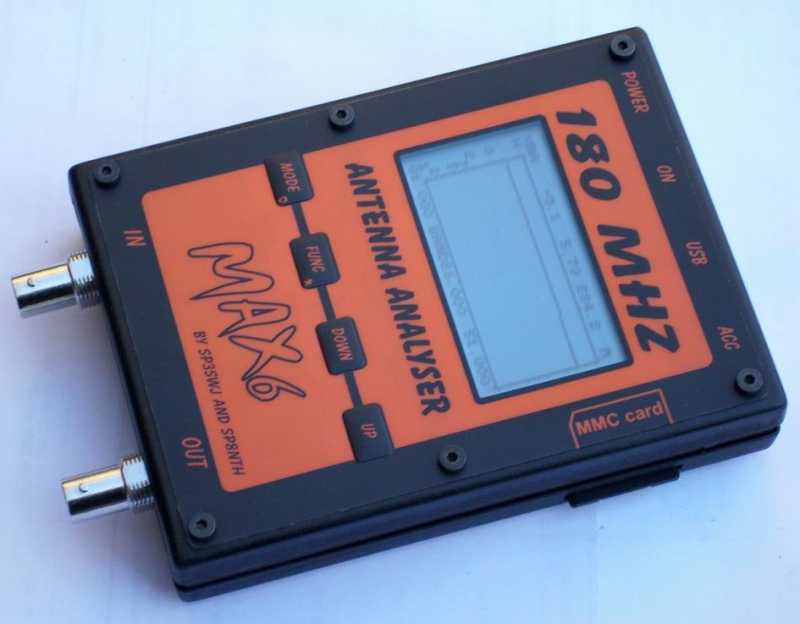

Info analyzers MAX6

PRICE :
Normal price only Info analyzers MAX6

MAX6-180MHz - 350 €
MAX6-500MHz - 450 €

Price promotion
HEXBEAM + MAX6
MAX6-180MHz - 330 €
MAX6-500MHz - 425 €
HEXBEAM MARK II + balun (only set) = 435 € + 30 € = only 465 €
shipment to Spain now - only 20€

Frequency coverage - depend on model (and price)
1-180 MHz or 1-500MHz

measurement resolution
- in PC mode 1Hz
- in LCD mode 1kHz

Build in Li-Ion battery
- MAX6-180 - 4 hour continuous work
- MAX6-500 - 1,5 hour continuous work (will be expanded by firmware upgrade)

AUTO POWER OFF
Can be charged any time wee need from 12...14V DC stabilized supplu ( from Car too)
Small pocket size
LCD 128x64 with regulated backlit ond good visibility in direct sunlight
Remote control via IR remote control
DDS Generator with 10 dBm to 20dBm output
2 Ports allow Transmission Measurements e.g. filters
additional two RF channel for duplexer and triplexer measurement (ACCessory socket)
USB1.1 and USB2 compatibility
RS232 TTL - ACCessory socket Bluetooth - and remote Android or PC application
Very Fast Scan (typical 0.6 sec for 500 points)
High Reflection Dynamic eturn Loss range - 40dB to 35dB (VSWR 1.06:1 up to 1,02:1 )
Wide Dynamic Range in Transmission mode up to 65dB
Filter measurement from both side in this same time SWR Z and Transmission
Measures VSWR, RL, Rs, Z +/-jx, Phase, Cable lenght, R/L/C
Typical impedance 50 ohm
Cable impedance (transmission line) measurement
Very high impedance measurement up to 50000 kohm (for example choke balun impedance)

Finds Minimum VSWR automatically in PC and LCD moce
Save data to SD CARD in three formats ZPLOT S2P TXT
UPGRADE Self Programming for future firmware - using just SD card
Software compatible with Windows and Linux and MAC

If you have any questions, write
